MACHINE SPECIFICATIONS
| Frequency: | 50Hz |
| Flow Rate: | 40.00 – 120.00 L/min |
| Revolutions: | 1450Rpm |
| Min Pressure: | 2.9Psi |
| Max Pressure: | 4060Psi |
| Oil Capacity: | 3.1Lt |
| Approx Weight: | 54Kg |
| Max Water Temp: | 65ºC |
| Inlet | G 1-1/4” |
| Outlet | G 3/4” |
| — | |
| — | |
| HLW: | —mm x —mm x —mm |

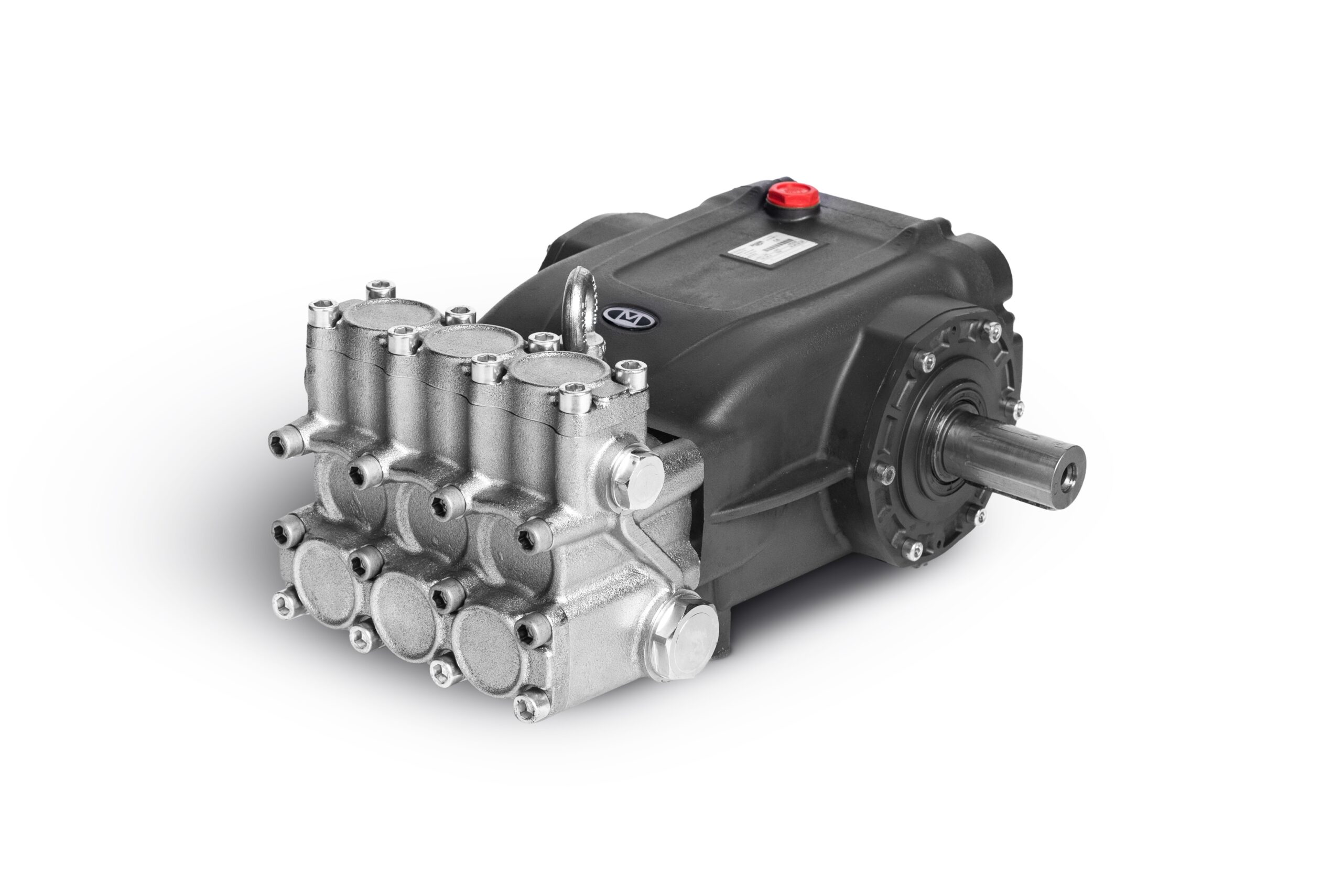

LM Models
LM100150R
| MODEL | LM100150R |
| FLOW RATE (L/min) | 100.00 |
| PRESSURE (Psi) | 2175.00 |
| POWER | 38.96HP / 28.86Kw |
| SHAFT | L: 80mm-Ø40 Right |
| PISTON (mm) | 40 |
MORE INFO
- Cast iron manifold designed for strength
- Cam-Ground pistons for smoother stroke and better oil-tightness
- Oversized shaft and long end section for better torque transmission
- Extra-thick ceramic pistons for greater durability
- Double gasket sealing system
- Intake and delivery valves with larger water passages
- Tapered roller bearings with high resistance
- Body of the pump designed for long-term durability
- Rods made of a special anti-friction alloy
Our range of LM kits
Our full range of Mazzoni LM pump kits
